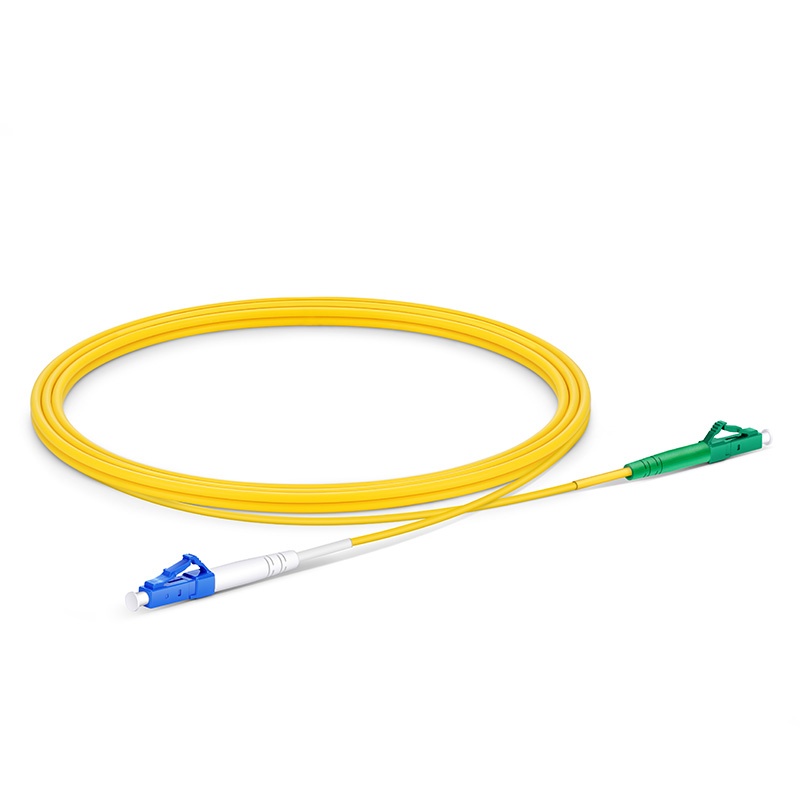

Ljósleiðari einfaldur LC/UPC-LC/APC singlemode OS2, 2 metrar - 12336

Lýsing High Quality and Cost-effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable The 9/125μm OS2 single mode bend insensitive fiber optic cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high-density cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.s fiber patch cables are needed. This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1575nm. Specifications Connector Type LC UPC to LC APC Fiber Grade G.657.A1 (Compatible with G.652.D) Fiber Mode OS2 9/125μm Wavelength 1310/1550nm Insertion Loss ≤0.3dB Return Loss UPC≥50dB, APC≥60dB Min. Bend Radius (Fiber Core) 10mm Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static) Attenuation at 1310 nm 0.36 dB/km Attenuation at 1550 nm 0.22 dB/km Fiber Count Simplex Cable Diameter 2.0mm Cable Jacket PVC (Riser/OFNR) Polarity A (Tx) to B (Rx) Operating Temperature -20 to 70°C (-4 to 158℉) Storage Temperature -40 to 80°C (-40 to 176℉) Build a Stable and Robust Fiber Optic Network High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber. Structural diagram Cross-section diagram
