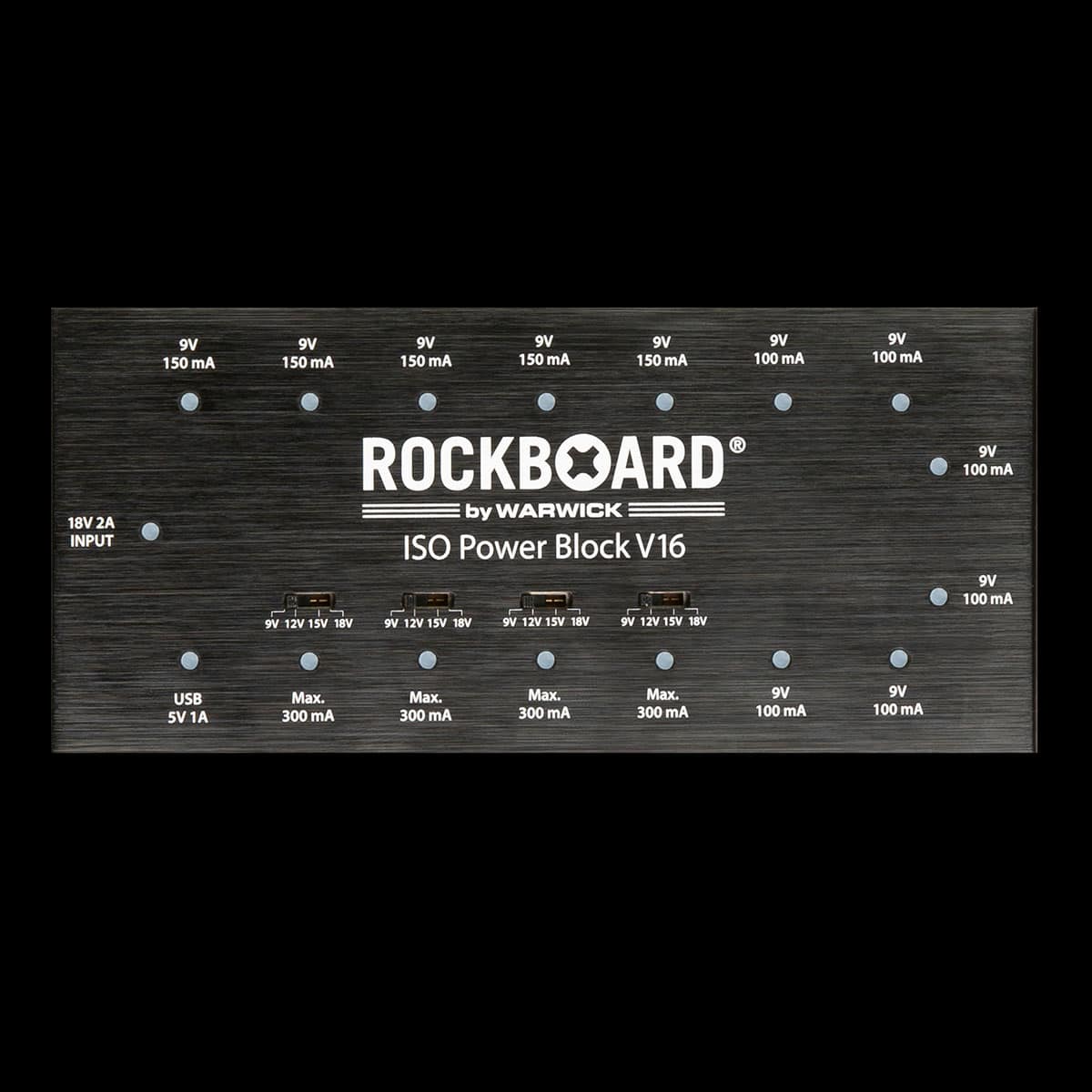

RockBoard ISO Power Block V16 – Isolated Multi Power Supply

Product Description Product Specs/Additional Information Related Videos Audio Product Description The ISO Power Blocks 6, 6 , 10 and 16 are multi-power supplies for effect pedals and provide up to 16 electrically isolated, highly filtered power connections and a 5V USB connection. The multi-power supply is designed to provide noiseless power to up to 16 effects pedals simultaneously, even with different operating voltages.The advanced filtering technology of the power slots effectively eliminates high-frequency noise. Separate short-circuit protection for each power slot protects the connected effects pedals from damage in the event of a short circuit. Separate LEDs indicate short circuits for each slot separately. Should a short circuit occur, only the affected power slot is switched off, leaving the rest of the effects rig operational. Product Specs/Additional Information multi-power supply for effects pedals16 transformer isolated and highly filtered and stabilized power slotsdesigned for powering up to 15 effects pedals simultaneously without any noise and charging USB devicesadvanced filter technology prevents high frequency noiseexternal transformer prevents low frequency interferencetotal output power: 27.95 W (3,550 mA)6x 9V DC, 100 mA each, 2.1 x 5.5 mm barrel plug, polarity (-) center5x 9V DC, 150 mA each, 2.1 x 5.5 mm barrel plug, polarity (-) center4x switchable slots (9V DC, 300 mA / 12V DC, 200 mA / 15V DC, 180 mA / 18V DC, 150 mA), 2.1 x 5.5 mm barrel plug, polarity (-) center1x USB-A 5V, 1000 mAshort circuit protection for all power slots, designated red LEDs for each slot indicate short circuit or wrong polarityinput voltage 18V DCincl. 1x 18V DC power adapter (2,000 mA) with exchangeable multi-regional plug adapters (EU, UK, US/CA, AU/NZ), input voltage 100-240V ACincl. 16x RockBoard Flat Power Cable, 60 cm – for connecting effects pedalsincl. 1x RockBoard Power Ace Voltage Doubler Y-Cable, 20 cm / 7 7/8″ (blue) – for bridging 2 slots and doubling/combining the volt outputincl. 1x RockBoard Power Ace Current Doubler Y-Cable, 20 cm / 7 7/8″ (white) – for bridging 2 slots and doubling/combining the current outputdimensions (L x W x H) 178 x 80 x 30 mm / 7 1/64″ x 3 5/32″ x 13/16″weight 400 g / 0.88 lbs Related Videos Audio
