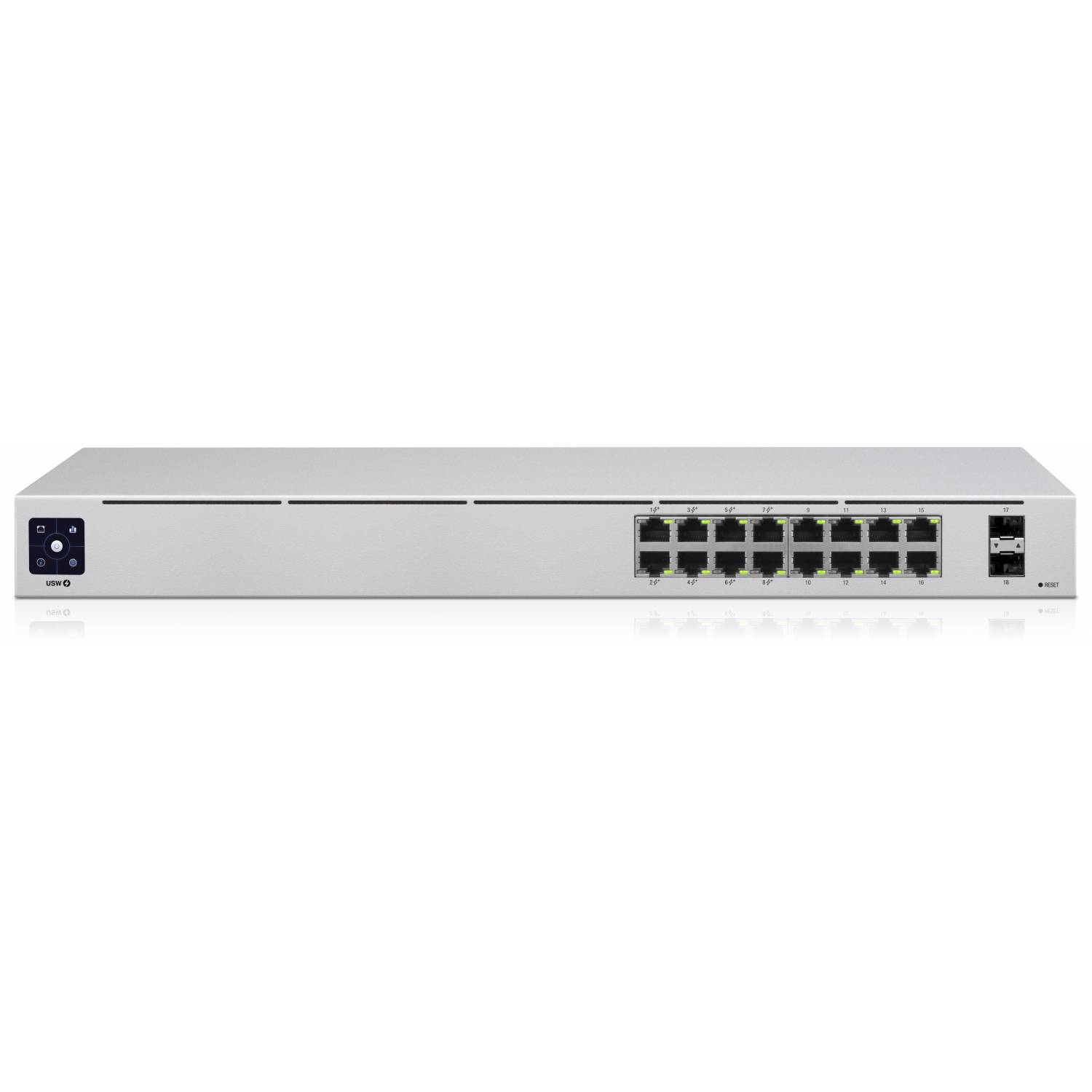

UniFi Switch USW-16-POE

Lýsing The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3″ touch LCM to provide status information. With a depth of 7.9″, the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere. Nánari upplýsingar hér Leiðbeiningar hér Specification Switch Type Managed Forwarding Rate 26.78 Mpps Tested ambient temperature -5°C to 40°C Ethernet Switch Ports 5 Ports Switching Capacity 36 Gbps 10/100/1000 Ethernet ports 16 Fiber SFP ports 2 Powering Power Method 100-240VAC, 50/60 Hz, Universal Input Power Supply AC/DC, Internal, 60W PoE Output Voltage 50-57V Max. PoE Wattage per Port 32W Number of PoE-out ports 8 Supported Input Voltage Range 100 to 240VAC Max power consumption without attachments 18 W
